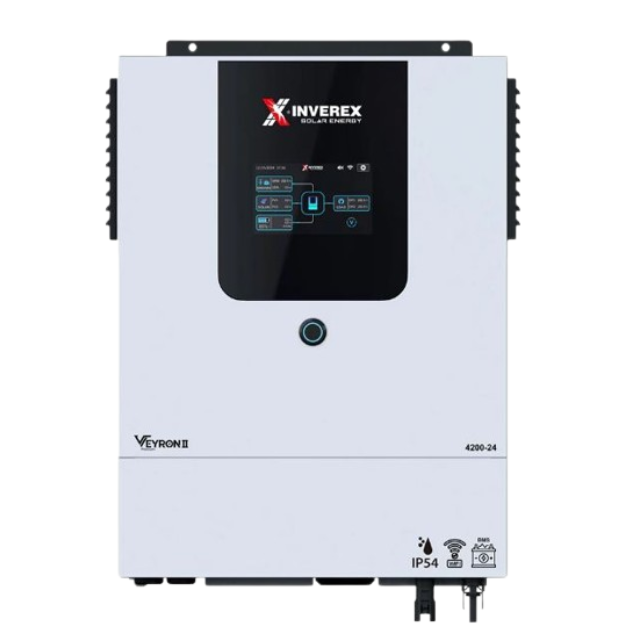

INVEREX VEYRON II 4KW-24V MPPT Solar Inverter
The INVEREX VEYRON II 4KW-24V MPPT Solar Inverter is an advanced and versatile inverter designed to deliver efficient solar energy conversion with modern features, making it ideal for both grid-tied and off-grid applications.
Key Features
- Built-in Wifi for Remote Monitoring: Allows users to monitor the system’s performance from anywhere, providing ease of access and control.
- Works Without Battery: Offers flexibility in solar energy use, operating effectively even without a battery connected.
- Wide PV Voltage Range (120 VDC – 450 VDC): Compatible with a broad range of solar panels, allowing for optimal system design.
- User-Friendly LCD Operation: Features an intuitive display, making it easy to operate and adjust settings.
- Battery Equalization Function: Helps optimize battery performance by balancing the charge, ensuring longer battery life and improved efficiency.
- Maximum Solar Charging Current of 120A: Ensures rapid and efficient battery charging, even during periods of high solar input.
- Max MPPT Input Current of 27A: Enables efficient power tracking and solar energy utilization.
- Built-in Communication Port for BMS: Ensures seamless communication with battery management systems for optimized battery performance and monitoring.
| POWER | |
| Charge Voltage | 27 VDC |
| Summary | |
| communication interface | RS232/RS485/CAN/Wifi |
| Voltage range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) |
| HARDWARE FEATURES | |
| Battery Voltage | 24 VDC |
| Efficiency | 93% |
| Operating Voltage | 60~450 VDC |
| Output | |
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) |
| TECHNICAL SPECIFICATION | |
| Array Power | 8000W |
| Rated Power | 4200VA/4200W |
| Surge Power | 8400VA |
| General Specification | |
| AC Voltage | 230VAC ± 5% |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Voltage | 230 VAC |
| Waveform | Pure sine wave |
| Weight | 10.2 kg |
| Dimension | 117.4×333.8×460.4 mm |
Summary
The INVEREX VEYRON II 4KW-24V MPPT Solar Inverter is a highly efficient solution for solar energy needs, featuring a wide PV voltage range, integrated Wifi for remote monitoring, and battery equalization to enhance battery longevity. With high current input capabilities and user-friendly controls, it’s a perfect choice for users looking for both flexibility and high performance in their solar systems.
